A distance of 25 m was chosen for the placement of the experimental
target. This distance corresponds to the distance used by the manufacturer
when zeroing the weapon. The distance l in this particular case is equal to

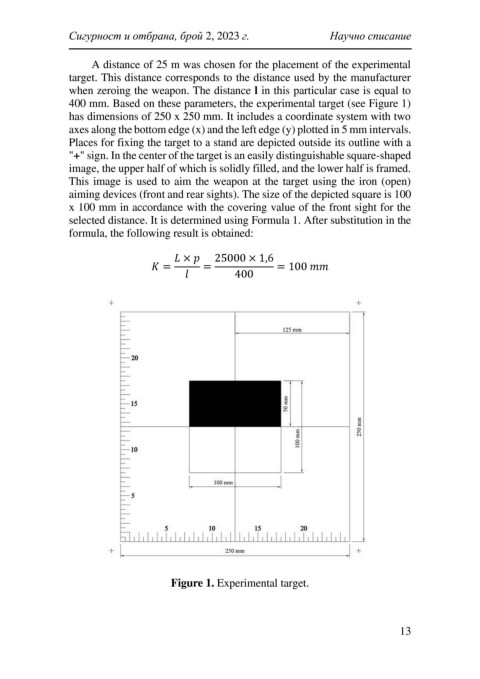

400 mm. Based on these parameters, the experimental target (see Figure 1)
has dimensions of 250 x 250 mm. It includes a coordinate system with two
axes along the bottom edge (x) and the left edge (y) plotted in 5 mm intervals.
Places for fixing the target to a stand are depicted outside its outline with a
"+" sign. In the center of the target is an easily distinguishable square-shaped
image, the upper half of which is solidly filled, and the lower half is framed.
This image is used to aim the weapon at the target using the iron (open)
aiming devices (front and rear sights). The size of the depicted square is 100
x 100 mm in accordance with the covering value of the front sight for the
selected distance. It is determined using Formula 1. After substitution in the
formula, the following result is obtained:

× 25000 × 1,6
= = = 100
400

Figure 1. Experimental target.
